B-15

Subwoofer de 15″ en una caja ventilada de tamaño muy compacto

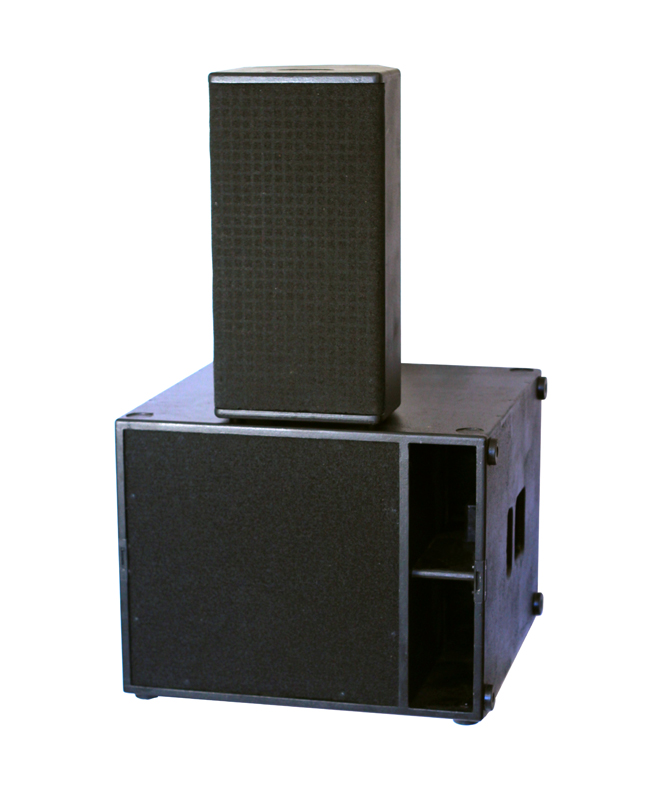

Extensión de graves para el T-801

B-15

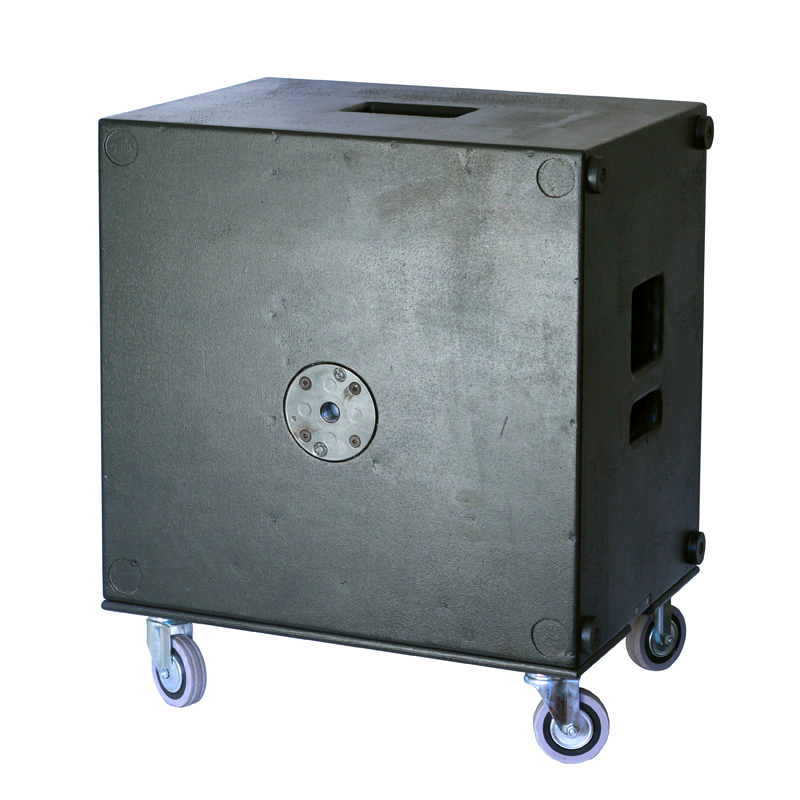

The B-15 is a compact and light weight subwoofer for extending the response of the T-801 speaker. The loudspeaker is actively driven by its dedicated amplifier channel and features a high performance, long stroke 15″ neodymium woofer with a 4″ voice coil. A large-dimensioned bass reflex port secures low power compression at high SPL. The cabinet ist built from 15 mm marine plywood with a high resistant black finish. It incorporates a pair of handles and two flanges for mounting a standard M20 threaded loudspeaker pole.

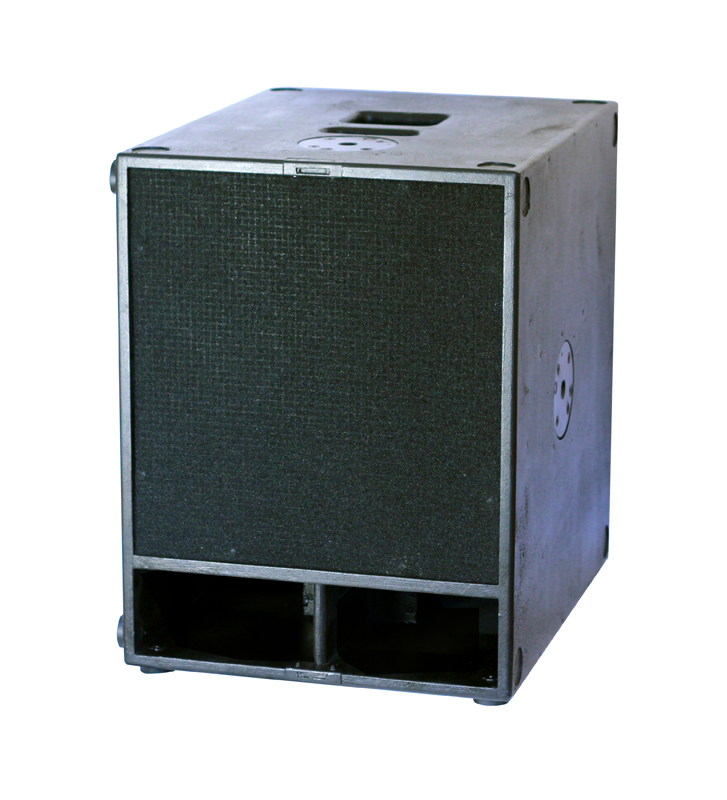

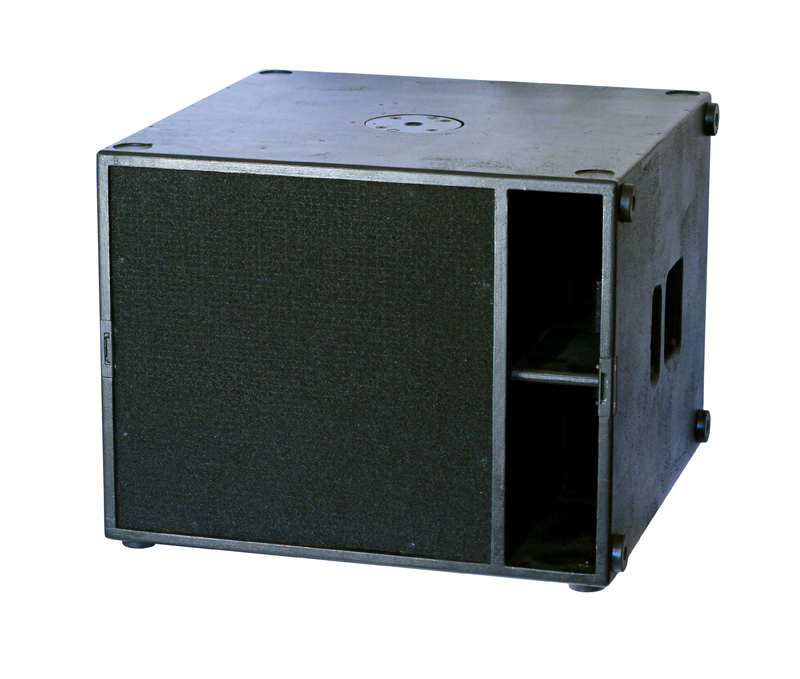

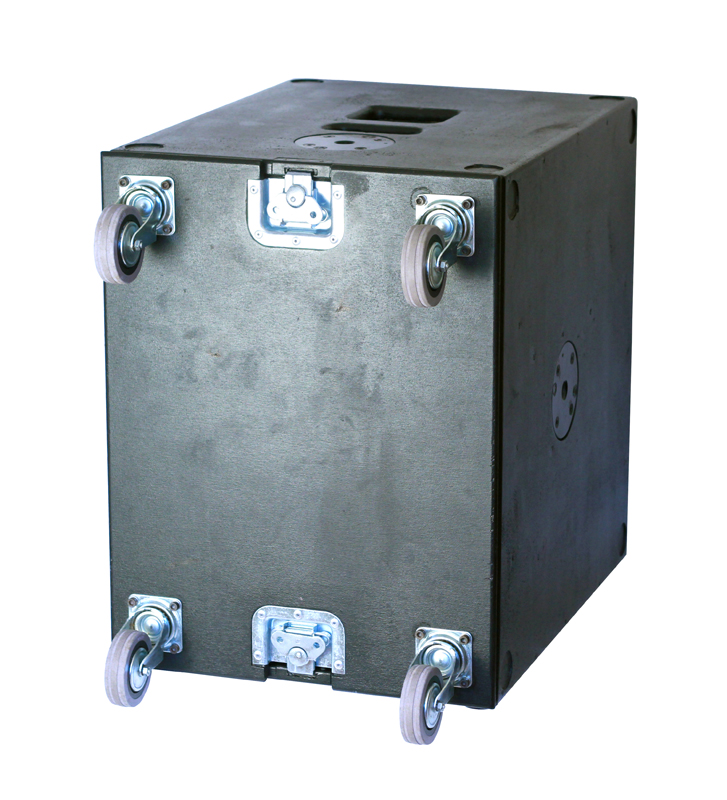

B15 front

B-15

  • Especificaciones técnicas

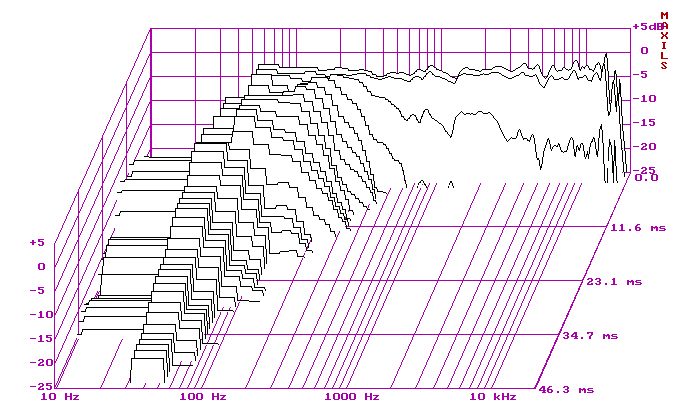

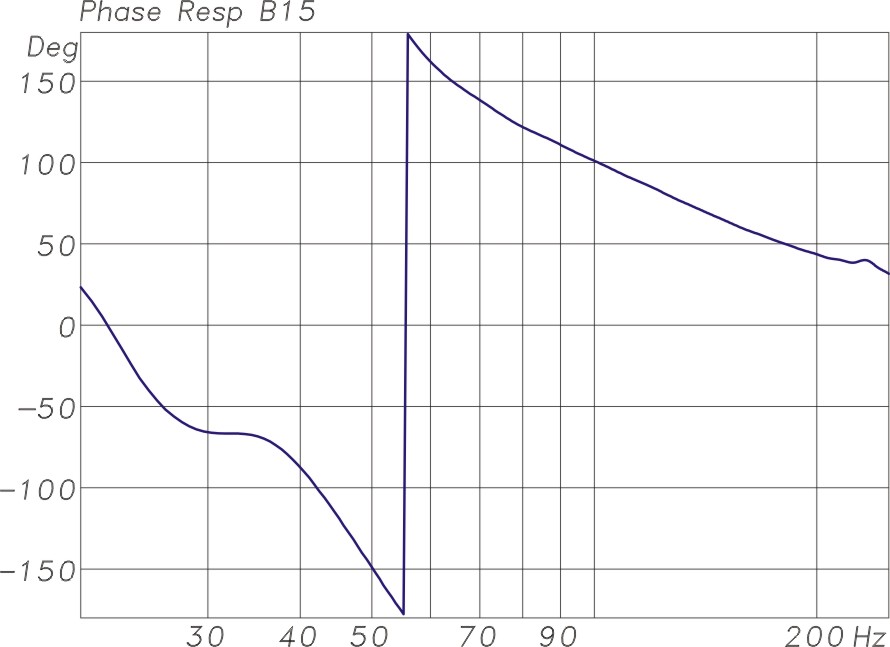

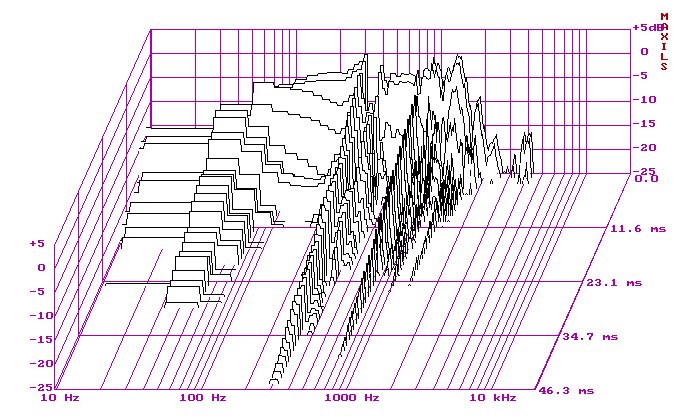

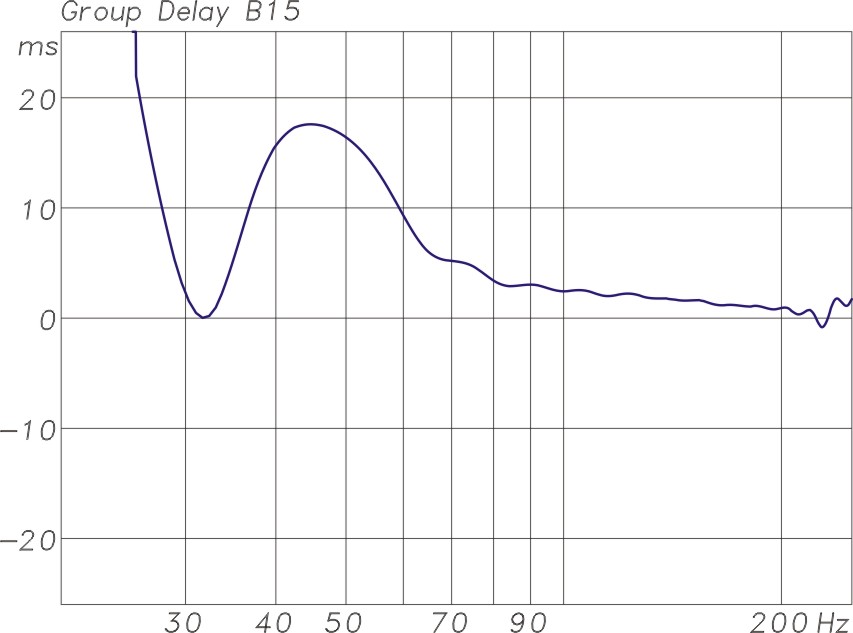

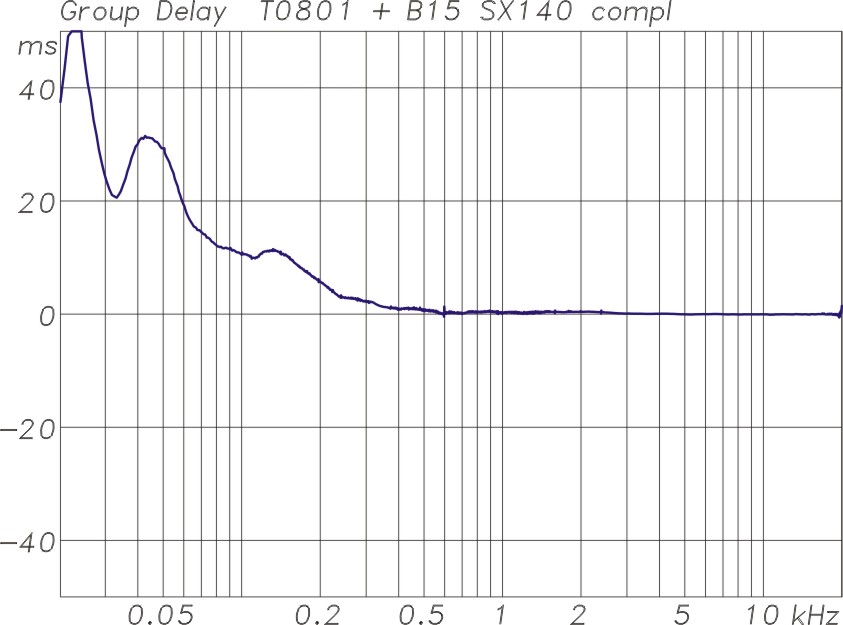

  • Mediciones
Components:15" neodymium woofer with 4" voice coil
Sensitivity (free field):94 dB (1W/1m)

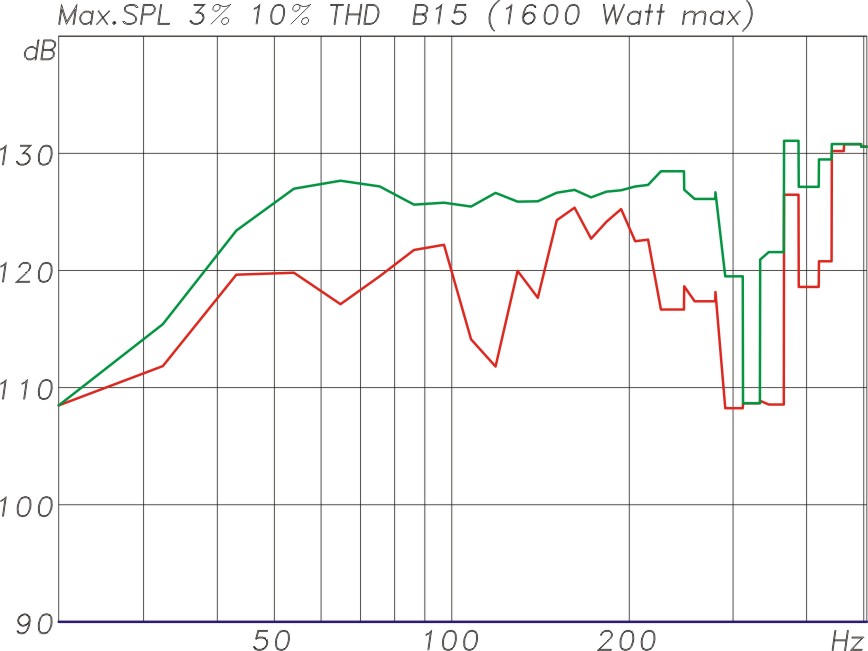

Maximum SPL128 dB peak (1m)
Nominal dispersion angle (h x v):omnidireccional
Power Handling:600 watts cont. / 2400 watts peak

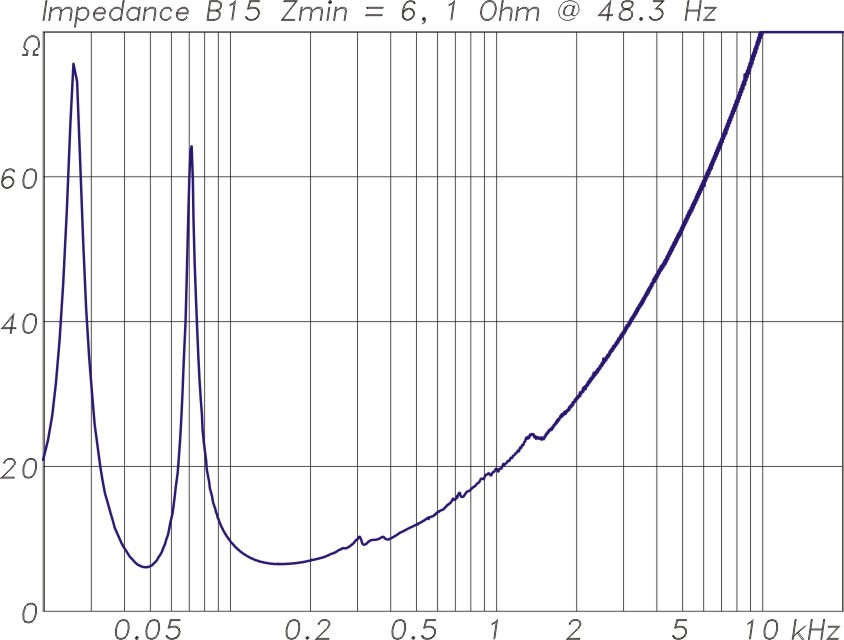

Nominal Impedance:8 ohms

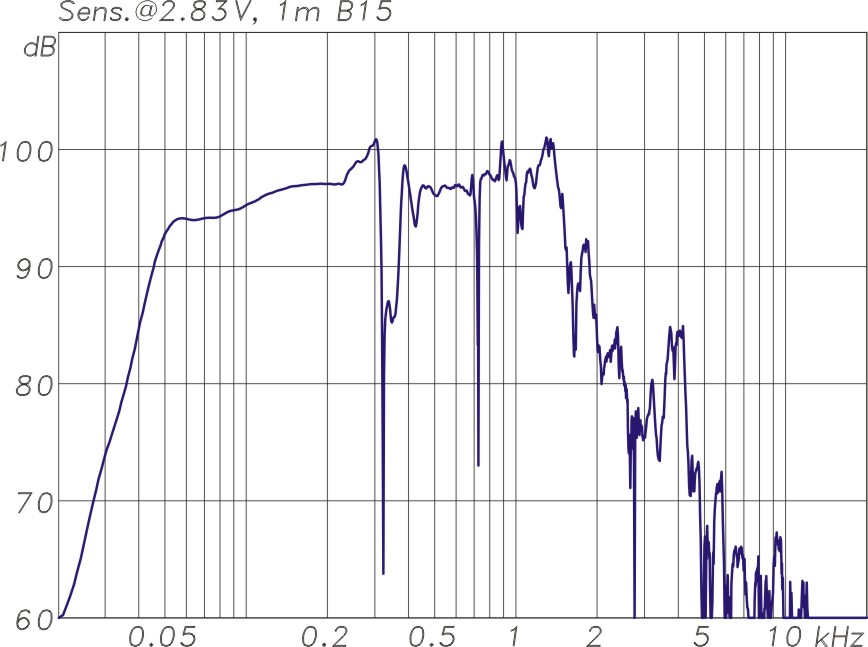

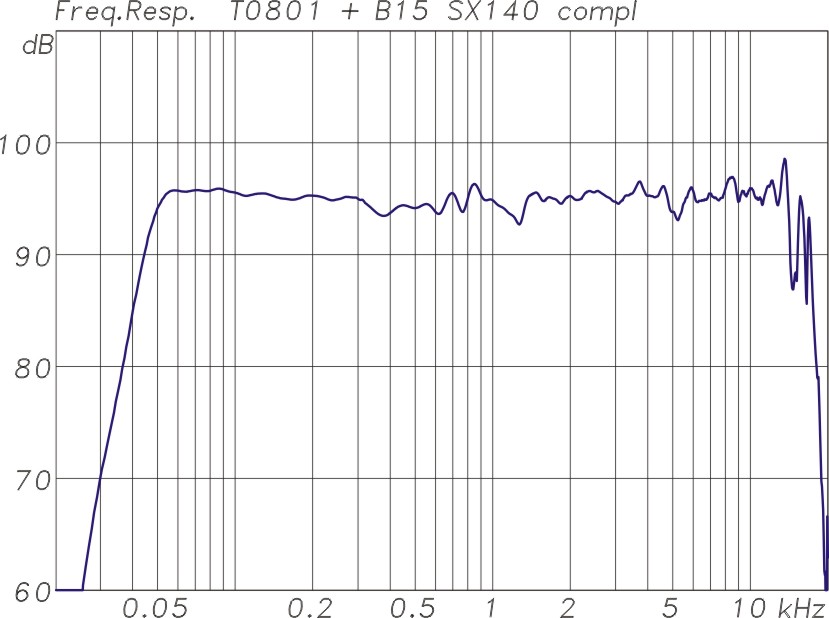

Frequency Response:40 - 230 Hz (-8 db)
Crossover Frequency:140 Hz with T-801
Dimensions:432 x 560 x 535 mm
Weight:23 kg
